Setting up Envoy Gateway

Envoy Gateway is a Kubernetes-native gateway controller that uses the standard Gateway API (GatewayClass, Gateway, HTTPRoute) to route external HTTPS traffic to Adeptia Automate running on an AKS or EKS cluster.

This document covers setup for both AKS (Azure) and EKS (AWS). Steps that apply to only one platform are clearly marked.

Architecture overview

Envoy Gateway has two components.

Control plane (Envoy Gateway Controller): Watches GatewayClass, Gateway, HTTPRoute, and policy CRDs and translates them into Envoy Proxy configuration. It manages configuration only and does not carry application traffic.

Data plane (Envoy Proxy): Pods deployed automatically when a Gateway is created. They terminate TLS, apply Layer-7 routing rules and policies, and forward traffic to backend Kubernetes services. All client traffic passes through these pods.

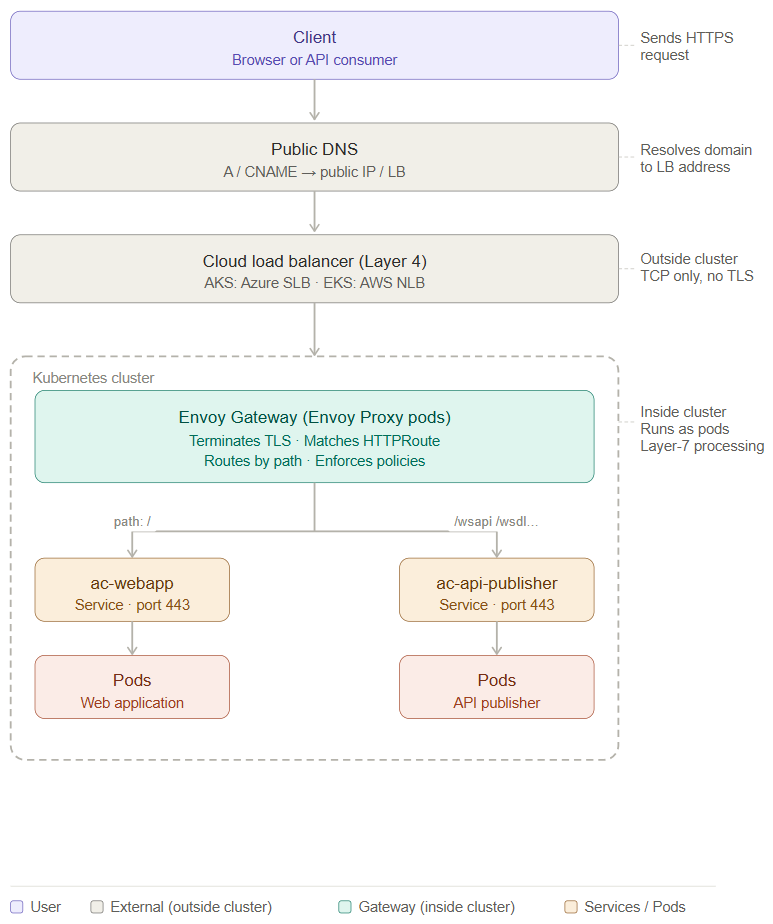

Traffic flow

Because Envoy handles Layer-7 routing, the cloud load balancer in front of it must operate at Layer 4 only. On AKS, Azure automatically creates an Azure Standard Load Balancer (Layer 4) — no extra configuration is needed. On EKS, you must explicitly configure an internet-facing NLB (Layer 4).

Prerequisites

For AKS

An active Azure subscription
An AKS cluster
Azure CLI v2.53 or higher

For EKS

An AWS account
An EKS cluster
AWS CLI v2.x

Required tools (for AKS and EKS)

Helm v3.9 or higher
kubectl (Kubernetes v1.26 or higher)

Step 1: Install CRDs and the Envoy Gateway Controller

1.1 Install CRDs

CRDs add new Kubernetes resource types — Gateway, HTTPRoute, and Envoy policy objects. Without them, Kubernetes does not recognize these resources.

Code

helm template eg-crds oci://docker.io/envoyproxy/gateway-crds-helm \n  --version v1.6.1 \n  --set crds.gatewayAPI.enabled=true \n  --set crds.gatewayAPI.channel=standard \n  --set crds.envoyGateway.enabled=true \n  | kubectl apply --server-side -f -

Verify:

Code

kubectl get crds | egrep 'gateway.networking.k8s.io|gateway.envoyproxy.io'

1.2 Install the Envoy Gateway Controller

Note: Choose one of the following commands based on your load balancer preference. Do not run both.

For a public load balancer (default):

Code

helm install eg oci://docker.io/envoyproxy/gateway-helm \n  --version v1.6.1 \n  -n envoy-gateway-system \n  --create-namespace \n  --skip-crds

For a private (internal) load balancer — AKS only:

Code

helm install eg oci://docker.io/envoyproxy/gateway-helm \n  --version v1.6.1 \n  -n envoy-gateway-system \n  --create-namespace \n  --skip-crds \n  --set service.type=LoadBalancer \n  --set-string service.annotations.service\.beta\.kubernetes\.io/azure-load-balancer-internal="true"

Verify that the controller pods are running:

Code

kubectl -n envoy-gateway-system get pods
kubectl -n envoy-gateway-system get svc -o wide
kubectl -n envoy-gateway-system rollout status deploy/envoy-gateway

All pods must be in Running state before proceeding.

Step 2: Create the GatewayClass

GatewayClass is the binding between the Gateway API and the Envoy Gateway controller. It tells Kubernetes that gateway.envoyproxy.io/gatewayclass-controller is responsible for managing Gateways of this class. This is a one-time, cluster-wide resource.

Code

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: <gatewayclass_name>
spec:
  controllerName: gateway.envoyproxy.io/gatewayclass-controller

Apply and verify:

Code

kubectl apply -f gatewayclass.yaml
kubectl get gatewayclass
kubectl describe gatewayclass <gatewayclass_name>

The ACCEPTED column must show True. Gateways will not work if the GatewayClass is not accepted.

Step 3: Create the TLS Secret

This Kubernetes secret stores the HTTPS certificate and private key for your domain. Envoy uses it to terminate TLS on incoming client connections.

Follow the steps below to create TLS secret:

Find the Certificate Alias Inspect the JKS keystore to identify the alias name of your certificate entry:

Code

keytool -list -v -keystore wildcard_adeptia_org.jks \
-storepass <password> | grep "Alias name"

Convert JKS to PKCS12 FormatKubernetes and OpenSSL work with PKCS12 format. Convert your JKS keystore accordingly:

Code

keytool -importkeystore \   -srckeystore wildcard_adeptia_org.jks \   -destkeystore wildcard_adeptia_org.p12 \   -deststoretype PKCS12 \   -srcalias <alias-from-step-1> \   -srcstorepass <password> \   -deststorepass <password>

Extract private keyExtract the private key from the PKCS12 file into a plain .key file:

Code

openssl pkcs12 -in wildcard_adeptia_org.p12 \   -nocerts -nodes \   -passin pass:<password> \   -out tls.key

Extract full certificate chainExtract all certificates from the PKCS12 file:

Code

openssl pkcs12 -in wildcard_adeptia_org.p12 \   -nokeys \   -passin pass:<password> \   -out fullchain.crt

Verify certificate chainConfirm that the certificate chain is complete and valid before proceeding:

Code

grep -c "BEGIN CERTIFICATE" fullchain.crt openssl x509 -in fullchain.crt -noout -subject -issuer

Create/update Kubernetes TLS secretCreate (or update if it already exists) the TLS secret in your target namespace:

Code

kubectl create secret tls ingress-tls \   --cert=fullchain.crt \   --key=tls.key \   -n <namespace> \   --dry-run=client -o yaml | kubectl apply -f -

Verify TLS secretConfirm the secret was created successfully and contains the expected certificates:

Code

kubectl get secret ingress-tls -n <namespace> \   -o jsonpath='{.data.tls\.crt}' | base64 -d | grep -c "BEGIN CERTIFICATE"

Step 4: Configure the EnvoyProxy Resource

Before creating the Gateway, configure an EnvoyProxy resource that controls how Envoy provisions the cloud load balancer. The configuration differs by platform and load balancer type.

	Select the scenario that applies to your environment and follow only that configuration.

AKS — Private (Internal) Load Balancer

Code

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: <envoy_proxy_name>
  namespace: <application_namespace>
spec:
  provider:
    type: Kubernetes
    kubernetes:
      envoyService:
        type: LoadBalancer
        annotations:
          service.beta.kubernetes.io/azure-load-balancer-internal: "true"
          service.beta.kubernetes.io/azure-load-balancer-ipv4: <lb_private_ip>

AKS — Public Load Balancer with Resource Limits

If you need to set resource limits on the Envoy deployment:

Code

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: <envoy_proxy_name>
  namespace: <application_namespace>
spec:
  provider:
    kubernetes:
      envoyDeployment:
        replicas: 2
        container:
          resources:
            requests:
              cpu: "500m"
              memory: "1Gi"
            limits:
              cpu: "2000m"
              memory: "2Gi"
      envoyService:
        annotations:
          service.beta.kubernetes.io/azure-load-balancer-tcp-idle-timeout: "30"
        externalTrafficPolicy: Local
        type: LoadBalancer
      type: Kubernetes

EKS — Public NLB

On EKS, this resource annotates the Envoy Service so that Kubernetes provisions an internet-facing Layer-4 NLB:

Code

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: <envoyproxy_name>
  namespace: <application_namespace>
spec:
  provider:
    type: Kubernetes
    kubernetes:
      envoyService:
        annotations:
          service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
          service.beta.kubernetes.io/aws-load-balancer-type: nlb

Code

kubectl apply -f envoyproxy-aws-nlb.yaml

Step 5: Create the Gateway

The Gateway resource defines the public entry point for traffic. It specifies the ports Envoy listens on, the hostnames it exposes, and TLS termination settings.

After applying, run kubectl get gateway -n <namespace> to confirm the following:

Field	Meaning
`CLASS`	GatewayClass binding is correct
`ADDRESS`	External IP has been assigned. You will need to map this external IP address to your application domain.
`PROGRAMMED=True`	Envoy Gateway successfully configured the data plane

AKS — Public Load Balancer Gateway

Code

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: <gateway_name>
  namespace: <application_namespace>
spec:
  gatewayClassName: <gatewayclass_name>
  listeners:
  - name: https
    hostname: <subdomain>            # e.g. myapp.example.com
    port: 443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: <tls_secret_name>
  # Add the following listener only if using a custom port for the API Publisher gateway
  - name: https-9443
    hostname: <subdomain>
    port: 9443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: <tls_secret_name>

AKS — Private (Internal) Load Balancer Gateway

When using an internal load balancer, reference the EnvoyProxy resource via the infrastructure section:

Code

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: <gateway_name>
  namespace: <application_namespace>
spec:
  gatewayClassName: <gatewayclass_name>
  infrastructure:
    parametersRef:
      group: gateway.envoyproxy.io
      kind: EnvoyProxy
      name: <envoy_proxy_name>
  listeners:
  - name: https
    hostname: <subdomain>
    port: 443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: <tls_secret_name>
  # Add the following listener only if using a custom port for the API Publisher gateway
  - name: https-9443
    hostname: <subdomain>
    port: 9443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: <tls_secret_name>

EKS — Gateway with NLB

On EKS, the infrastructure.parametersRef is required to attach the NLB settings from the EnvoyProxy resource configured in Step 4:

Code

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: <gateway_name>
  namespace: <application_namespace>
spec:
  gatewayClassName: <gatewayclass_name>
  # AWS ONLY — attaches NLB settings from the EnvoyProxy resource
  infrastructure:
    parametersRef:
      group: gateway.envoyproxy.io
      kind: EnvoyProxy
      name: <envoyproxy_name>
  listeners:
  - name: https
    hostname: <subdomain>            # e.g. myapp.example.com
    port: 443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: <tls_secret_name>

Apply and verify:

Code

kubectl apply -f gateway.yaml
kubectl get gateway -n <application_namespace>
kubectl describe gateway <gateway_name> -n <application_namespace>

Step 6: Create HTTPRoute

HTTPRoute defines URL path-based routing rules. Envoy evaluates incoming requests against these rules and forwards each request to the matching backend service.

Code

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: <httproute_name>
  namespace: <application_namespace>
spec:
  parentRefs:
  - name: <gateway_name>
    sectionName: <section_name>     # example: https-443
  hostnames:
  - <subdomain>      # myapp.example.com
  rules:
  - matches:
    - path: { type: PathPrefix, value: /wsapi }
    - path: { type: PathPrefix, value: /rest/triggerprocess }
    - path: { type: PathPrefix, value: /wsdl }
    - path: { type: PathPrefix, value: /wsdl/services }
    - path: { type: PathPrefix, value: /wsdl/SOAPWebhook }
    - path: { type: PathPrefix, value: /wsx/services }
    - path: { type: PathPrefix, value: /rest/wsx/services }
    backendRefs:
    - name: ac-api-publisher-gateway
      port: 443
    timeouts:
      backendRequest: "30m"
      request: "30m"

  - matches:
    - path: { type: PathPrefix, value: / }
    backendRefs:
    - name: ac-webapp-gateway
      port: 443
    timeouts:
      backendRequest: "30m"
      request: "30m"

# if configuring with custom port for api-publisher gateway (9443) create a separate httproute for that
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: <httproute_name>
  namespace: <application_namespace>
spec:
  parentRefs:
  - name: <gateway_name>
    sectionName: <section_name>   # for example https-9443
  hostnames:
  - <subdomain>               # myapp.example.com
  rules:
  - matches:
    - path: { type: PathPrefix, value: /wsapi }
    - path: { type: PathPrefix, value: /rest/triggerprocess }
    - path: { type: PathPrefix, value: /wsdl }
    - path: { type: PathPrefix, value: /wsdl/services }
    - path: { type: PathPrefix, value: /wsdl/SOAPWebhook }
    - path: { type: PathPrefix, value: /wsx/services }
    - path: { type: PathPrefix, value: /rest/wsx/services }
    backendRefs:
    - name: ac-api-publisher-gateway
      port: 9443
    timeouts:
      backendRequest: "30m"
      request: "30m"

Apply and verify:

Code

kubectl apply -f <http Route yaml>
kubectl get httproute -n <application_namespace>
kubectl describe httproute <http Route Name> -n <application_namespace>

Step 7: Apply Client Traffic Policy

This policy configures two behaviors on the Envoy Gateway listener.

Underscore header support: Envoy blocks HTTP headers containing underscores by default. Adeptia Connect internal API calls use headers with underscores, so this policy allows them to pass through.

TLS version enforcement: Only TLS 1.2 and TLS 1.3 are permitted. TLS 1.0 and 1.1 are blocked.

Code

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: ClientTrafficPolicy
metadata:
  name: <client-traffic-policy-name>
  namespace: <application_namespace>
spec:
  connection:
    bufferLimit: 800Mi
  headers:
    withUnderscoresAction: Allow
  http2:
    initialConnectionWindowSize: 10485760
    initialStreamWindowSize: 10485760
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: Gateway
      name: <gateway_name>
  timeout:
    http:
      idleTimeout: "30m"
      requestReceivedTimeout: "30m"
  tls:
    maxVersion: "1.3"
    minVersion: "1.2"

Apply and verify:

Code

kubectl apply -f clienttrafficpolicy.yaml
kubectl get clienttrafficpolicy -n <application_namespace>
kubectl describe clienttrafficpolicy <clienttrafficpolicy_name> -n <application_namespace>

Step 8: Configure Backend TLS

This step configures Envoy to validate TLS certificates when connecting to backend Adeptia services. A ConfigMap holds the internal CA certificate, and a BackendTLSPolicy references it.

8.1 Create the CA ConfigMap

Code

apiVersion: v1
kind: ConfigMap
metadata:
  name: <configmap_name>
  namespace: <application_namespace>
data:
  ca.crt: |
    -----BEGIN CERTIFICATE-----
    <REPLACE WITH INTERNAL CA CERTIFICATE>
    -----END CERTIFICATE-----

Apply and verify:

Code

kubectl apply -f ca_config.yaml
kubectl get configmap -n <application_namespace>
kubectl describe configmap <configmap_name> -n <application_namespace>

8.2 Create BackendTLSPolicy for Webapp Gateway and API Gateway

Code

apiVersion: gateway.networking.k8s.io/v1
kind: BackendTLSPolicy
metadata:
  name: <backendtls_apipublisher_name>
  namespace: <application_namespace>
spec:
  targetRefs:
  - group: ""
    kind: Service
    name: ac-api-publisher-gateway
    sectionName: defaultport        # Service port name for 443
  # Add the following targetRef only if using port 9443
  - group: ""
    kind: Service
    name: ac-api-publisher-gateway
    sectionName: customport         # Service port name for 9443
  validation:
    hostname: adeptiaconnect
    caCertificateRefs:
    - group: ""
      kind: ConfigMap
      name: <configmap_name>
---
apiVersion: gateway.networking.k8s.io/v1
kind: BackendTLSPolicy
metadata:
  name: <backendtls_webapp_name>
  namespace: <application_namespace>
spec:
  targetRefs:
  - group: ""
    kind: Service
    name: ac-webapp-gateway
    sectionName: https
  validation:
    hostname: adeptiaconnect
    caCertificateRefs:
    - group: ""
      kind: ConfigMap
      name: <configmap_name>

Apply and verify:

Code

kubectl apply -f backendtlspolicy.yaml
kubectl get backendtlspolicy -n <application_namespace>
kubectl describe backendtlspolicy <backendtlspolicy_name> -n <application_namespace>

Accessing the Application

Once all resources are applied and verified, the application is accessible at the hostname, for example,https://myapp.example.com.

Architecture overview​

Traffic flow​

Prerequisites​

Step 1: Install CRDs and the Envoy Gateway Controller​

1.1 Install CRDs​

1.2 Install the Envoy Gateway Controller​

Step 2: Create the GatewayClass​

Step 3: Create the TLS Secret​

Step 4: Configure the EnvoyProxy Resource​

AKS — Private (Internal) Load Balancer​

AKS — Public Load Balancer with Resource Limits​

EKS — Public NLB​

Step 5: Create the Gateway​

AKS — Public Load Balancer Gateway​

AKS — Private (Internal) Load Balancer Gateway​

EKS — Gateway with NLB​

Step 6: Create HTTPRoute​

Step 7: Apply Client Traffic Policy​

Step 8: Configure Backend TLS​

8.1 Create the CA ConfigMap​

8.2 Create BackendTLSPolicy for Webapp Gateway and API Gateway​

Accessing the Application​

Architecture overview

Traffic flow

Prerequisites

Step 1: Install CRDs and the Envoy Gateway Controller

1.1 Install CRDs

1.2 Install the Envoy Gateway Controller

Step 2: Create the GatewayClass

Step 3: Create the TLS Secret

Step 4: Configure the EnvoyProxy Resource

AKS — Private (Internal) Load Balancer

AKS — Public Load Balancer with Resource Limits

EKS — Public NLB

Step 5: Create the Gateway

AKS — Public Load Balancer Gateway

AKS — Private (Internal) Load Balancer Gateway

EKS — Gateway with NLB

Step 6: Create HTTPRoute

Step 7: Apply Client Traffic Policy

Step 8: Configure Backend TLS

8.1 Create the CA ConfigMap

8.2 Create BackendTLSPolicy for Webapp Gateway and API Gateway

Accessing the Application
