Version: 4

Defining a Convert Outbound Template

The first step while creating a Template is to provide a Template definition. The definition includes details, such as name, description, and other information about the Template.

Only a Company administrator and an IT User can create a Template. However, it is recommended that the IT User creates a Template.

To provide the definition of a Template:

Click Configure > T****emplates > Create Template.

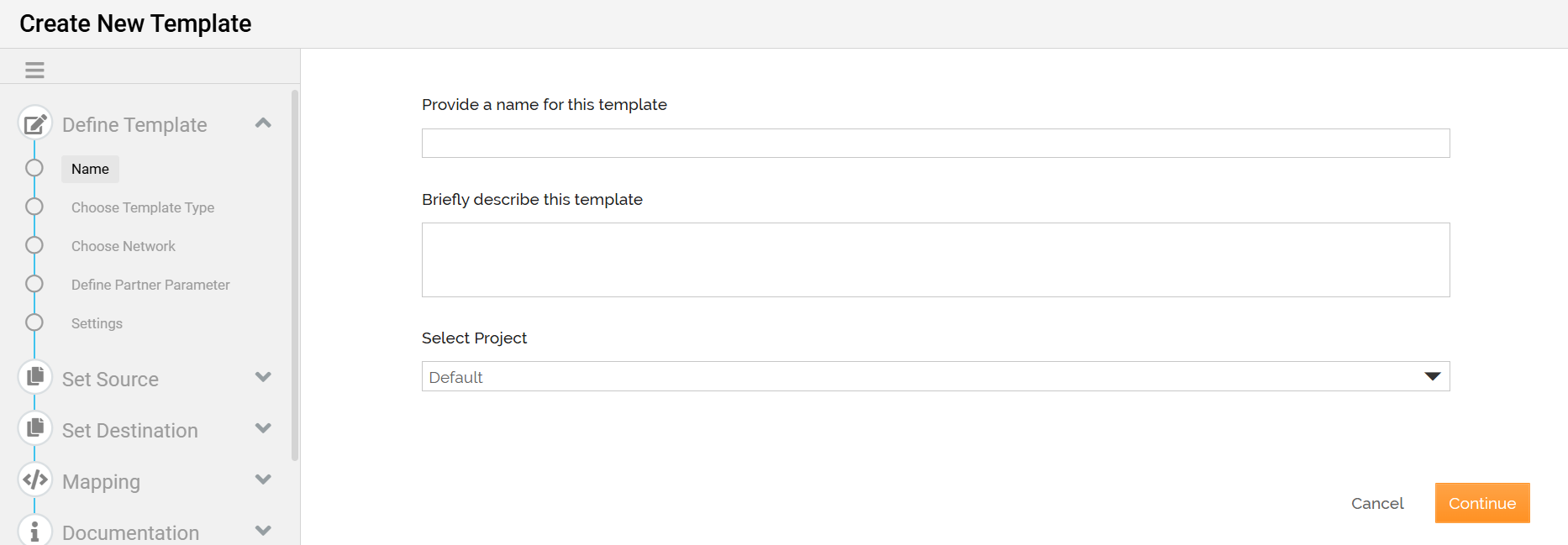

On the Create New Template screen, provide the name and description of the Template. The name should be a unique name and can be up to 48 characters long. The description of the Template can be up to 300 characters long.
Select the project from the Select Project drop-down list.

By default, the Select Project field displays the default project of the logged-in user as the selected project.
Provide a display name for the Template.
Click Continue.

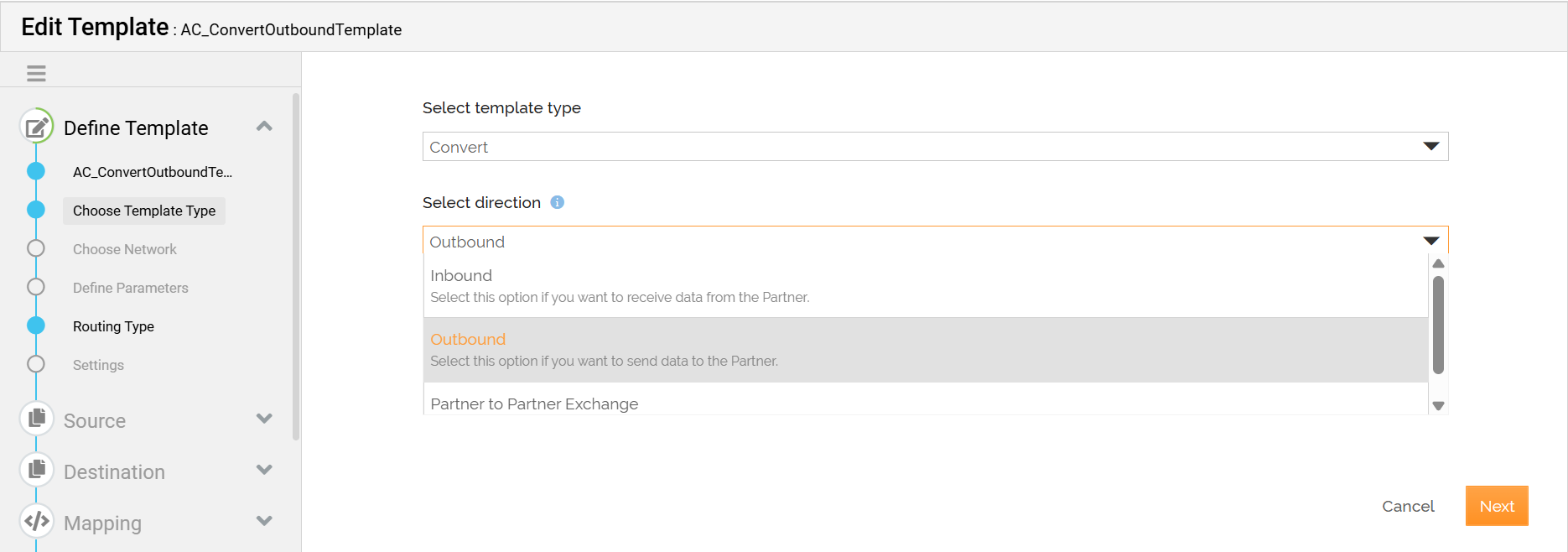

Select Convert from the template type, Outbound from the direction, and click Next.
Select the Network for which you are creating the Template. To select multiple Networks from the drop-down list, click the Networks one by one. Only the Partners of the selected Network(s) will be able to access this Template.
Select the checkbox Allow Import Partner(s) which allows you to select a Web Form to import Partners while configuring the Transaction.

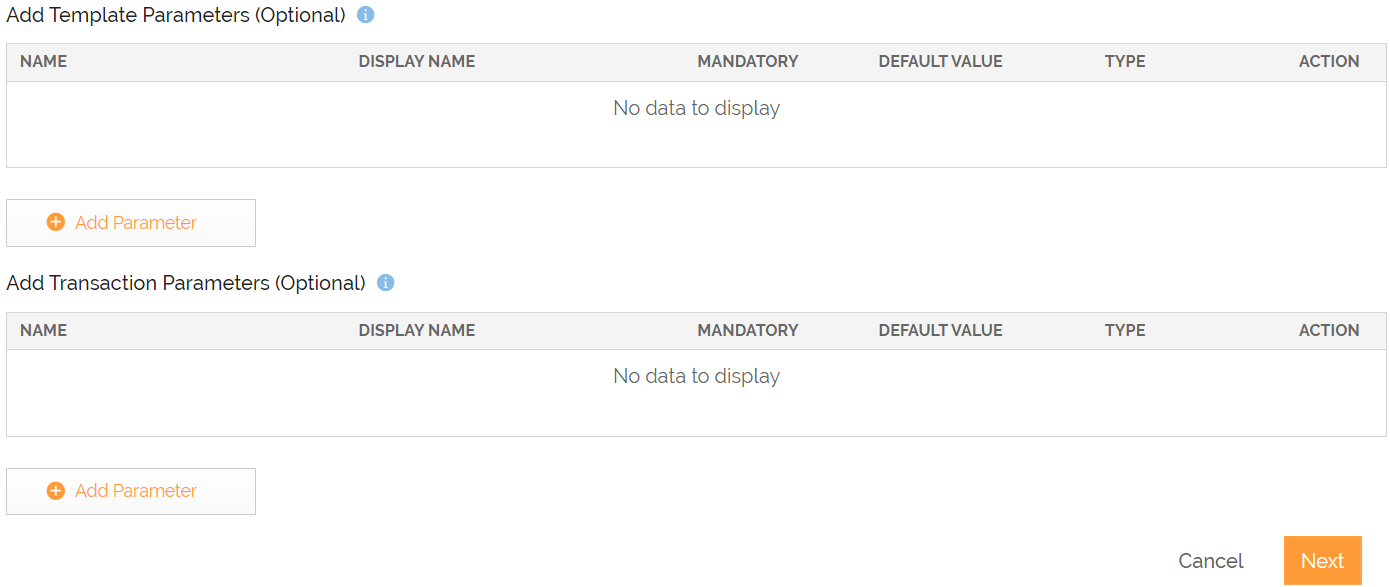

Click Next to define the additional parameters for the Partners.

These are the parameters whose value you want to get while creating a Template or Transaction.
- Template Parameters: Company Users will define the value of these parameters while creating a Template.
- Transaction Parameters: Business Users or IT Users will define the value of these parameters while creating a Transaction using this Template.

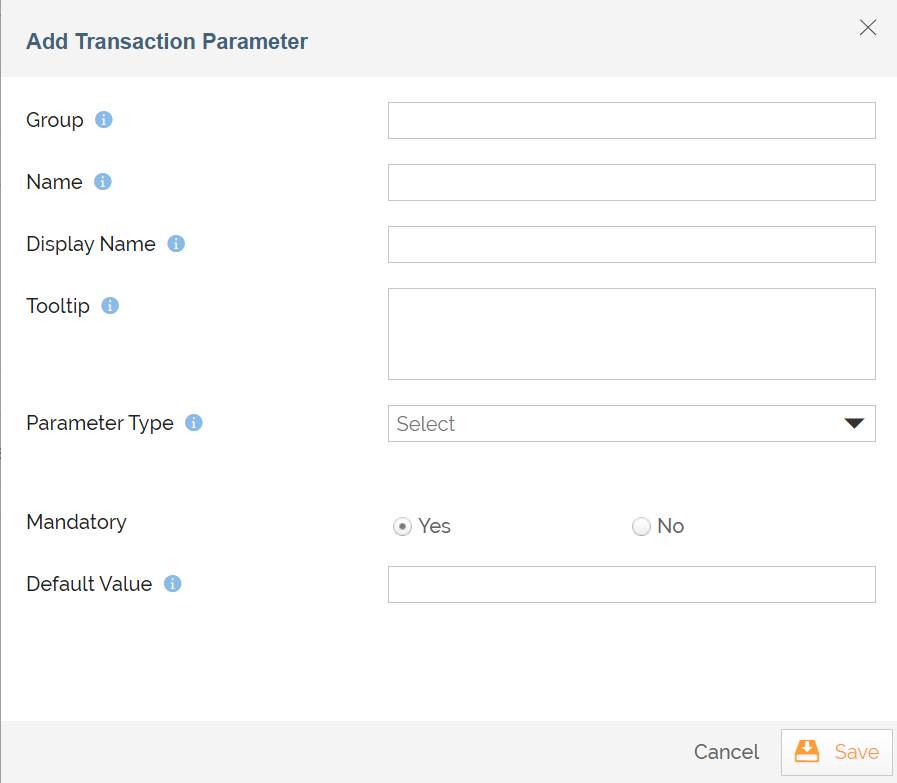

Click Add Parameter to define the parameters.

Fields	Description
Group	Unique name to identify a group.
Name	Name of the parameter.
Display Name	Display the name for the Parameter. This display name will be visible instead of the Parameter's actual name on the Parameter Values page.
Tooltip	Message that you want to show as a tooltip for the Parameter.
Parameter Type	Type of the input parameter to be received from the Partner.
Mandatory	Parameter may be mandatory or optional. By default, the parameters are mandatory.
Default Value	Default value of the parameter.

Depending on the Parameter Type you have selected, you may have to define some additional fields/options or settings while defining a parameter. Refer to the Templates and Transactions Parameters page for more information on fields and their possible values.

You can define the parameters mandatory or optional with the Mandatory checkbox. Uncheck the mandatory checkbox to define the parameters optional. By default, parameters are mandatory.

The Partner who will use this Template to create a Transaction will define the values of these specified parameters that will be stored in the context of the process flow. Add as many parameters you want by clicking Add Parameter.

Click Next to define the values of the Template parameters. This screen appears only if you have provided Template Parameters in the previous step.
Select the Routing Type from here. Ensure that the routing type you choose should be dropped in the process flow you had selected for this template.
Select None if you don't want any routing type for this template.

Description
Context Based Select this option to fetch and process files based on the file name.
Content Based Select this option to fetch and process files based on the content of the file.
Click Next to configure the Template settings step.

	Description
Context Based	Select this option to fetch and process files based on the file name.
Content Based	Select this option to fetch and process files based on the content of the file.

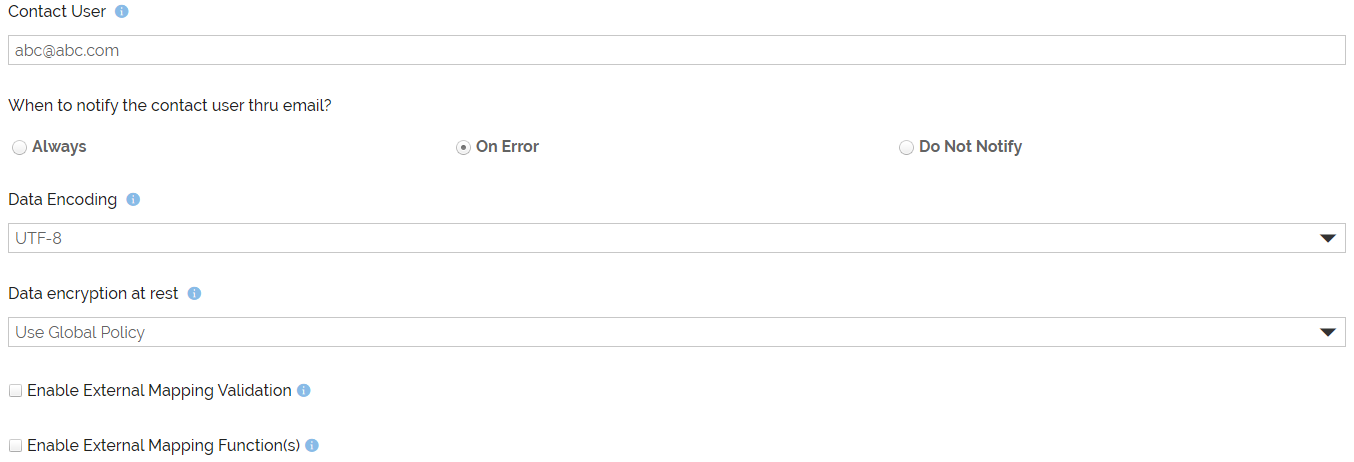

On the Settings screen, do the following:

Enter the details as described in the following table.

Field Name

Description

Contact User

Email id(s) listed here will receive a notification email whenever the Transaction
is executed successfully or if there is an error during execution. Multiple email
ids are separated by a comma.

If Adeptia Connect is running on multiple environments and you want to receive
environment name in the emails, then you need to specify the environment name
in the relevant property (Account > Settings > Expand Application Settings >
Common > Expand Personalization).

When to notify the contact?

Always: Send an email whenever the execution of the transaction associated with
this template is successful.

On Error: Send an email if an error occurred during the execution of the transaction
associated with this template.

Do Not Notify: Select this option if you do not want to receive an email notification
after the execution of the transaction associated with this template.

Email Notification Format

This field is visible only when you have selected Always or On Error option to send
the notification to the user.

You can choose the Email Notification Format to use in the email notification to be
sent to the user on successful and failed Transaction. There are two possible values
for this: Default and Customized Notification Format. By default, the value of this
field is set to Default.

If you select the Customized Notification Format, you need to provide the following
details:

Select the custom success email notification format from the Custom Success
Notification Format field. You can also create a new email notification format
by clicking .

The existing email notification format can also be copied and edited by clicking
the and icons respectively. Use refresh icon to refresh the list.
This field is visible only when you have selected Always option to send the notification to the user.
Select the custom error email notification format from the Custom Error
Notification Format field. You can also create a new email notification
format by clicking .

The existing email notification format can also be copied and edited by
clicking the and icons respectively. Use refresh icon to refresh the list.
This field is visible only when you have selected On Error or Always option to send the notification to the user.

Data Encoding

Character-set encoding for your source data. The available options are UTF-8,
UTF-16, UTF-32, and ISO-8859-1.

You can also add and use a valid custom Data Encoding.

Data encryption at rest

Select the particular option from drop-down list of Data encryption at rest. You can
enable, or disable, and use global Property value to configure EAR for Template.

Use Global Policy: Select 'Use Global Policy' to use Global Property value for
Template.
Yes: Select 'Yes' to enable EAR for Template. It will not use Global Property value.
No: Select 'No' to disable EAR for Template. It will not use Global Property value.

Enable External Mapping Validation

You can use this function to validate the REST API in mapping. Follow the steps
to enable the External Mapping Validation:

Select the Enable External Mapping Validation checkbox to configure
the REST account for external mapping validation.
Select the Rest Account from the drop-down list of Provide REST
Consumer information field. You can also create a new REST Account
by clicking .
Select the Do Not Persist Mapping In Case Validation Failed checkbox
if you want to restrict saving mapping until the external mapping validation
succeeds.
When this checkbox is selected, the external mapping validation will be triggered every time the system/user tries to save the mapping.

Click here to get more details on using Validation Option in Mapping.

Enable External Mapping Function(s)

You can use this function to apply the external map function in the mapping through
REST API. Follow the steps to enable the External Mapping Function:

Select the Enable External Mapping Function(s) checkbox to select
the REST account.
Select the Rest Account from the dropdown list of Provide REST
Consumer information field. You can also create a new REST Account
by clicking .

Click here to get more details on using Available Functions in Mapping.

Select the steps which you want to hide at the time of Transaction creation

Select the step that you want to hide while creating a Transaction by using this
Template. You can hide either the Definition page or the Settings page.

If you choose to hide the Definition Page:

The template definition will be treated as the definition for the transaction.
The transaction name will be a combination of the template name and the
partner name.

If you choose to hide the Settings Page:

The settings done on the Template Settings page will be treated as the
settings for the transaction.

By default, the following values will be set for logging level, repository file retention, and activities logging retention for a Transaction you create using this Template:

When the Routing Type is set to None:

Logging Level: ERROR
Repository File Retention: DELETE ON SUCCESS EXCEPT SOURCE DATA
Activities Logging Retention: DONT DELETE

When Routing Type is set to Content or Context Based:

Repository File Retention: DELETE ON SUCCESS EXCEPT SOURCE DATA

Once External Mapping Function is enabled, then you can choose Available Functions from the Destination elements of mapping to apply the custom function as a mapping expression.

Once External Mapping Validation is enabled, then icon is visible on the toolbar of mapper to validate the REST API.

Expand Advanced Settings to set the Logging Level and Activity Logging Retention. The available options are DONT DELETE, DELETE, DELETE ON SUCCESS, and DELETE ON SUCCESS EXCEPT SOURCE DATA. To learn more about these options, refer to this page.
The Logging Level and Activity Logging Retention appear on this screen only when you select the Routing Type as Content Based or Context Based. When you select Routing Type as None, these options appear while you create a Transaction using this Template.

Click Next to select the Source application.
