Creating Scripts for Post Process Application in Process Flow

Using Process Flow in a Template​

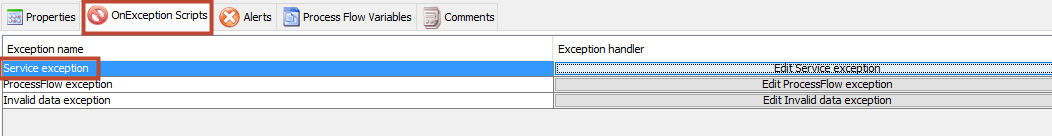

While creating a Process Flow, in the Process Designer, write the following script in the Service exception field under the OnException Scripts tab.

Informationimport org.apache.commons.lang.exception.ExceptionUtils;

Throwable rootCause = ExceptionUtils.getRootCause(exception);
String exceptionMessage = null;
if(rootCause == null)
exceptionMessage = exception.getMessage();
else
exceptionMessage = rootCause.getMessage();

context.put("subprocess_code", "ERROR_IN_CHILD_FLOW");
context.put("subprocess_text", exceptionMessage);

Process Flow Calling Another Transaction​

If the Process Flow is further calling a Transaction, you need to create a custom plugin using below JavaScript. After you have created a custom plugin, use it in the Process Flow.

JavaScript for Custom Plugin to set child context Param to call any Transaction:

Code

import com.adeptia.connect2.runtime.RuntimeUtils;
RuntimeUtils.setChildContext(inputStream, context, service.getLogger(), "<<ACTION_NAME>>", "<<TransactionName>>", "<<PartnerName>>");

where,

ACTION_NAME is the name of the call or spawn.

TransactionName is the name of the Transaction.

PartnerName is the name of the Partner for which Transaction is created.

for example,

Copy Code
Code
 RuntimeUtils.setChildContext(inputStream, context, service.getLogger(), "Action_Name", "FTP_To_Email_Transaction", "Adeptia");

|

InformationEnsure that you have provided the values in double quotes (").

If you are the owner of the Transaction then type null (without double quotes) as a value in the partner name, for example,

Copy Code
Code
RuntimeUtils.setChildContext(inputStream, context, service.getLogger(), "<<ACTION_NAME>>", "<<FTP_To_Email_Transaction>>", null);

|

JavaScript for Custom Plugin to set child context Param for calling another process flow:

Code

import com.adeptia.connect2.runtime.RuntimeUtils;
RuntimeUtils.setChildContext(inputStream, context, service.getLogger(), "<<ACTION_NAME>>", null);


JavaScript to check child flow is Aborted or not:

Copy Code
Code
import com.adeptia.connect2.runtime.RuntimeUtils;
return RuntimeUtils.isChildFlowAborted(context, "<<resultCtxVarName>>");

|

where,

resultCtxVarName is the name of the context variable that contains the status of the sub-flow. The value can be Executed, Aborted, Queued, or Waiting.

JavaScript for Custom plugin to abort parent flow:

Code

import com.adeptia.connect2.runtime.RuntimeUtils;
RuntimeUtils.abortParentFlow(context, "<<resultCtxVarName>>");

Process Flow Design​

Following are the sample designs of the Process Flow, calling a Transaction through Call or Spawn action:

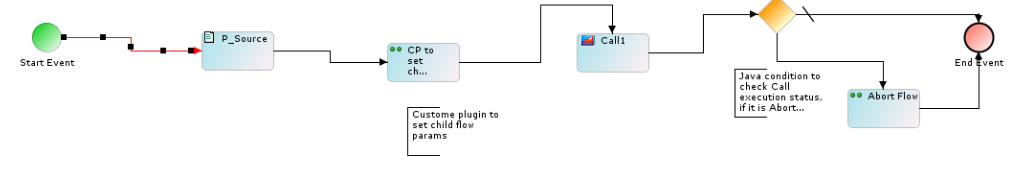

Using SIngle Call

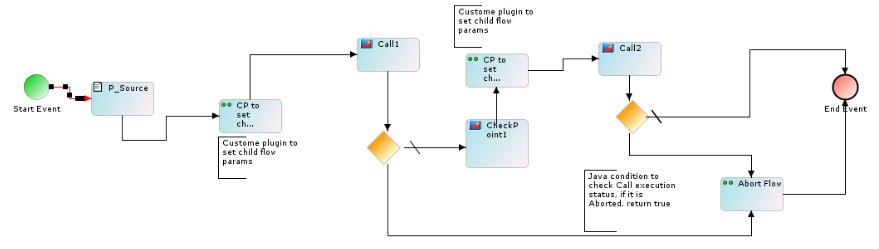

Using Multiple Call

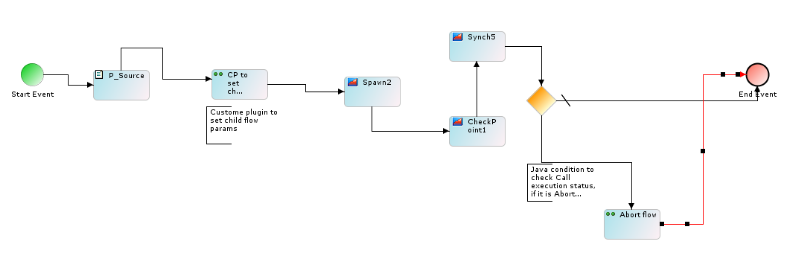

Using Single Spawn

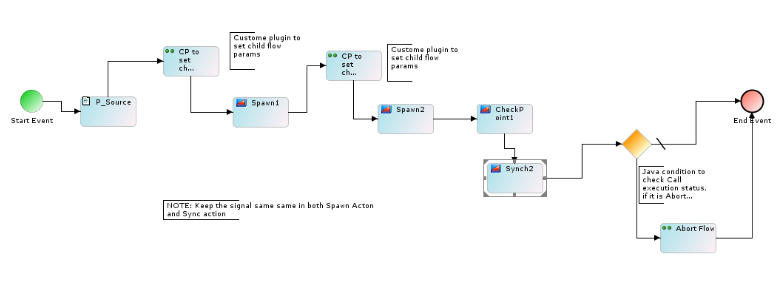

Using Multiple Spawn

Calling Transaction in Call or Spawn​

To call a Transaction in Call or Spawn action:

  1. In the Process Designer, select Call or Spawn action.
  2. On the Properties tab, in the flowId field, select the following process Flow:
